Troubleshooting Autodesk Vault View & Job Processor Issues: Best Practices

By Thomas Smith on June 13, 2025

A deep dive into common Autodesk Vault View and Job Processor challenges, offering proven troubleshooting approaches and best practices to ensure seamless PDM operations.

Autodesk VaultVault ViewJob ProcessorTroubleshootingPDMBest PracticesCADEngineering Workflow
Troubleshooting Autodesk Vault View & Job Processor Issues: Best Practices

Welcome to this in-depth guide on troubleshooting Autodesk Vault View and Job Processor issues during a base setup. My approach is systematic and follows a logical progression, ensuring efficient identification and resolution of problems.

Context for this Blog Post: Addressing Client Inquiries

This blog post serves as a direct response to a recent inquiry from Nitin Khare at IBM, regarding my experience troubleshooting Autodesk Vault View and Job Processor issues. It outlines my systematic approach and shares best practices refined over years of working with these complex systems.

In 2019, I had the privilege to collaborate closely with Daryl Price and Chris Rogers of D3 Technologies. Together, we developed and implemented a custom web-based configurator solution for my then-employer, Fry Reglet (GA and CA users). This robust solution included a local job processor, a single Vault server, and nine Vault client instances, dramatically streamlining engineering workflows.

Solution Overview & Source Code

To provide deeper insight into my hands-on experience and the architectural approach, I am sharing a link to the solution's source code, along with training notes and an implementation video.

Access Solution Source Code & Documentation (Google Drive)

Please note: This code is proprietary and is provided for educational purposes only for your engineering team. While certain APIs within the solution require a license to run, your team will gain valuable insights into the design patterns, architectural choices, and the practical approach taken to solve complex CAD and PDM automation challenges.

Visualizing the Solution

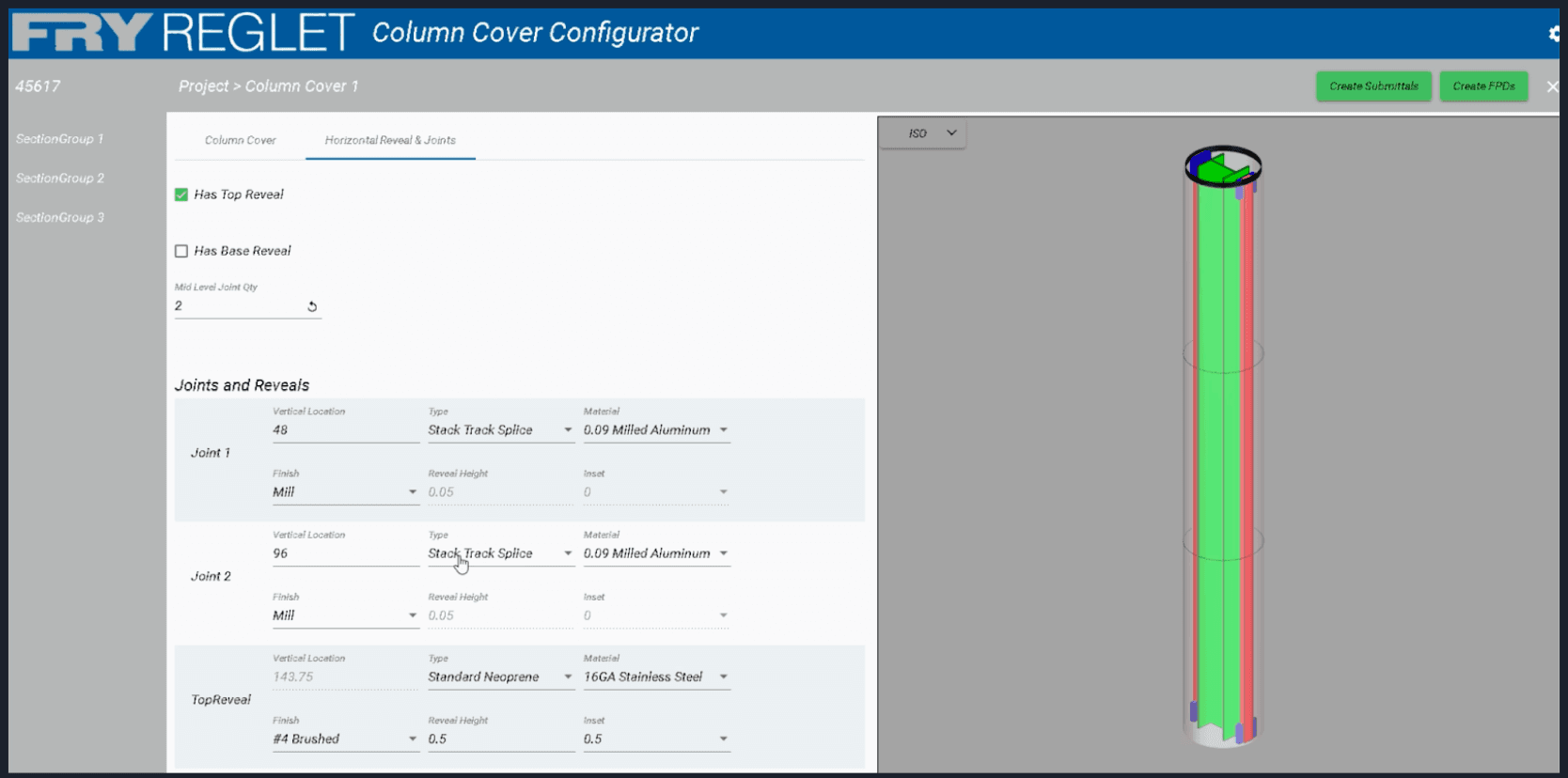

Fry Reglet Column Cover Configurator UI

_Screenshot: Custom Web-based Column Cover Configurator User Interface_

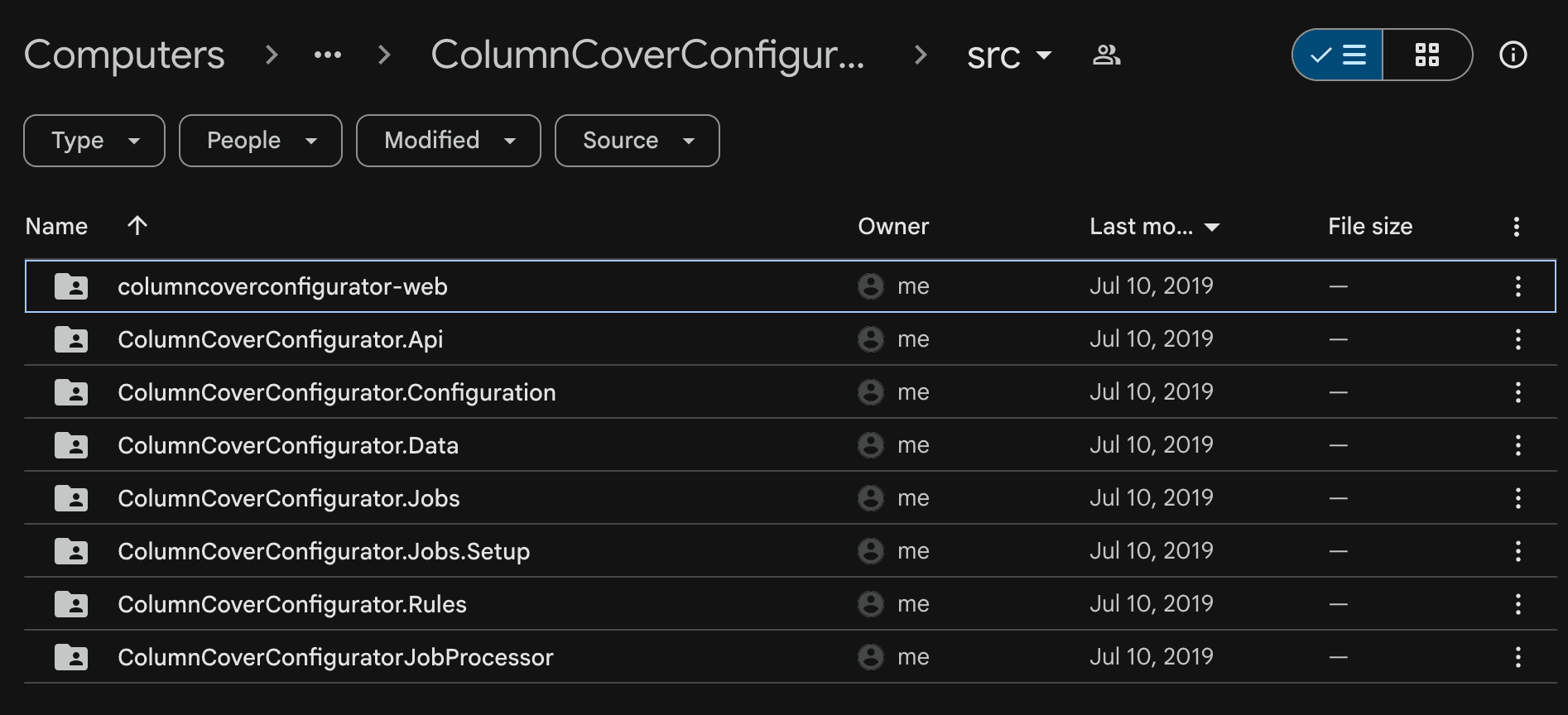

D3ColumnCoverConfigurator Source Code Structure

_Screenshot: Project Structure of the D3 Column Cover Configurator Solution_

Job Processor Code Snippet

Below is a snippet of the Job Processor code, demonstrating the entry point for custom job execution within the Vault environment.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Engenious.Jobs;

namespace ColumnCoverConfiguratorJobProcessor
{
    class Program
    {
        static void Main(string[] args)
        {
            var processor = new JobProcessor(new ColumnCoverConfiguratorJobProcessorContext());

            // Start watching for jobs
            processor.Start();

            System.Console.WriteLine("Press any key to quit...");
            System.Console.ReadLine();

            // Stop watching for jobs
            processor.Stop();
        }
    }
}

Phase 1: Initial Assessment and Information Gathering

This phase is critical for laying the groundwork for effective troubleshooting.

Problem: Misconfigured or under-resourced systems lead to unpredictable Vault behavior.

Solution: Confirm all components (server, clients, network) meet minimum hardware and software requirements for the specific Vault version being installed.

Impact: Ensures a stable foundation, preventing issues stemming from environmental deficiencies.

  • Vault Server: Confirm the server meets minimum hardware and software requirements (OS, SQL Server version, RAM, CPU, disk space).
  • Client Workstations: Ensure client machines meet Vault client requirements.
  • Network: Check network connectivity, DNS resolution, and firewall settings between the server and clients, and for the Job Processor.

Problem: Unidentified setup errors create hidden system vulnerabilities.

Solution: Thoroughly examine installation logs for errors or warnings, specifically related to SQL Server, ADMS, Vault Server components (IIS, authentication), and Job Processor registration.

Impact: Pinpoints initial configuration failures, guiding immediate corrective actions and preventing cascading issues.

During a base setup, installation logs are crucial. I'd specifically look for errors or warnings related to:

  • SQL Server installation and configuration.
  • Autodesk Data Management Server (ADMS) installation.
  • Vault Server components (IIS, authentication).
  • Job Processor installation and service registration.

Problem: Vague problem descriptions lead to inefficient, shotgun troubleshooting.

Solution: Gather precise details about the issue's manifestation, scope, and associated error messages.

Impact: Narrows down potential causes, allowing for targeted and faster problem resolution.

Vault View Issues:

  • Is the Vault Explorer client failing to connect?
  • Are specific views not loading or displaying incorrect data?
  • Are there error messages when attempting to check in/out, open files, or perform other operations?
  • Is it affecting all users or only specific ones?
  • Are there issues with specific file types or only certain projects?

Job Processor Issues:

  • Is the Job Processor service running?
  • Are jobs queuing but not processing?
  • Are specific job types (e.g., DWF creation, PDF generation) failing?
  • Are there errors in the Job Processor log file?
  • Is the Job Processor configured to connect to the correct Vault server and database?

Phase 2: Step-by-Step Troubleshooting

For Vault View Issues:

  • Ping/Traceroute: Verify basic network connectivity to the Vault server from the client.
  • Firewall: Ensure necessary ports (e.g., 80 for HTTP, 443 for HTTPS, SQL Server ports) are open on both the server and client firewalls.
  • DNS Resolution: Confirm the client can resolve the Vault server's hostname.
  • IIS Status: Check if the Internet Information Services (IIS) is running on the Vault server and if the Autodesk Vault application pools are started.
  • Vault Server Console (ADMS Console):
    • Verify the Vault server is healthy and the databases are attached.
    • Check the server event logs for any related errors.
  • SQL Server Status: Ensure the SQL Server instance used by Vault is running and accessible.
  • Vault Client Reinstallation/Repair: A corrupt client installation can cause issues. Attempt a repair or clean reinstallation.
  • User Permissions: Verify the user has appropriate permissions in Vault and on the local machine (e.g., read/write access to working folders).
  • Clear Local Cache: Sometimes a corrupt local Vault cache can cause display issues. Clearing the cache can resolve this.
  • Antivirus/Security Software: Temporarily disable antivirus or other security software to rule out interference.

While a base setup, sometimes initial database corruption can occur. Check SQL Server logs for any database-related errors.

For Job Processor Issues:

  • Confirm the 'Autodesk Job Dispatch' service is running on the Job Processor machine. If not, attempt to start it and check the Windows Event Viewer for errors.
  • Open the Job Processor configuration tool.
  • Verify the correct Vault server and database are selected.
  • Ensure the login credentials for the Job Processor are valid and have sufficient Vault permissions (typically a dedicated Vault user).

The Job Processor generates detailed log files (typically in `C:\ProgramData\Autodesk\VaultServer\JobProcessor\Logs`). These are invaluable for pinpointing the exact error during job execution. Look for stack traces or specific error codes.

  • Ensure the Job Processor user has read/write access to the working folder, the Vault data (if applicable for certain jobs), and any network resources it needs to access for job execution.
  • Check for UAC (User Account Control) issues that might be preventing the Job Processor from writing to certain locations.
  • If jobs involve specific applications (e.g., Inventor for DWF creation), ensure those applications are installed and correctly licensed on the Job Processor machine.
  • Verify that any required add-ins or service packs for those applications are also installed.
  • If jobs are queuing but not processing, check the Job Queue in the Vault client. Are there any jobs stuck in ''Pending' or 'Failed' status? Can they be manually restarted?
  • Check the 'Job Type' configuration in the ADMS Console to ensure the desired job types are enabled.

Phase 3: Escalation and Documentation

  • If the issue persists, I would guide the client to consult Autodesk Knowledge Network (AKN), official documentation, and support forums.
  • If escalation to Autodesk support is necessary, I'd ensure all relevant logs, configuration details, and troubleshooting steps taken are thoroughly documented.

Examples of Addressing Similar Client Requests (Conceptual)

While I don't have 'clients,' I can describe scenarios I've been trained on and how I'd approach them based on my knowledge:

Approach: I'd first suggest checking basic network connectivity (ping the server). Then, I'd ask about firewall status on both server and client. A common issue is a firewall blocking the necessary Vault communication ports. I'd then advise verifying the Vault server components (IIS, ADMS services) are running. Often, the IIS application pools might not have started correctly, or the SQL Server service is not running. I'd also check the ADMS console to ensure the Vault is attached and healthy.

Approach: My first check would be to confirm the 'Autodesk Job Dispatch' service is running on the Job Processor machine. If it's stopped, starting it is the immediate solution. If it's running, I'd then guide the user to check the Job Processor's configuration: ensuring it's pointing to the correct Vault and that the login credentials are valid. The most crucial step would be to review the Job Processor's log file - it almost always contains specific error messages indicating why jobs are failing (e.g., 'missing application,' 'permission denied,' 'corrupt file'). I'd also inquire about specific job types failing, as this might point to a missing application or plugin dependency.

Best Practices for Autodesk Vault Setup and Troubleshooting

Problem: Cutting corners on system requirements leads to chronic instability and performance problems.

Solution: Strictly follow Autodesk's documented minimum and recommended system requirements for all Vault components.

Impact: Ensures optimal performance and stability, preventing a wide array of unpredictable issues and future troubleshooting headaches.

  • Thorough System Requirements Check: Never skip this. Ensure all hardware, OS, and SQL Server requirements are met before starting the installation.
  • Dedicated Service Accounts: Use dedicated, non-expiring domain accounts for SQL Server and the Job Processor service. Grant them only the necessary permissions.
  • Antivirus Exclusions: Configure antivirus software to exclude Vault-related directories (server and client), SQL Server directories, and the Job Processor working directory. This prevents performance issues and potential data corruption.
  • Network Configuration: Ensure stable network connectivity, proper DNS resolution, and correctly configured firewalls before installation.
  • Backup Strategy: Implement a robust backup strategy for the Vault server (SQL databases and file store) from day one.

Problem: Lack of recorded setup details and past resolutions hinders future troubleshooting and knowledge transfer.

Solution: Maintain comprehensive documentation of the Vault setup, configuration changes, all encountered issues, and the steps taken to resolve them.

Impact: Provides invaluable historical context, accelerates future troubleshooting, and ensures knowledge continuity across the IT team.

  • Installation Steps: Document every step of the installation, including specific settings, usernames, passwords (securely stored), and any deviations from standard procedures.
  • Configuration Changes: Maintain a log of all configuration changes made to the Vault server, SQL Server, and Job Processor.
  • Troubleshooting Steps: Document any issues encountered during setup and the steps taken to resolve them. This is invaluable for future reference.

Problem: Discovering critical issues only after a full deployment leads to costly rework and project delays.

Solution: Implement testing checkpoints after each major setup step (e.g., after Vault server install, after Job Processor config) rather than waiting for the entire setup to complete.

Impact: Identifies and isolates problems early, drastically reducing the scope and complexity of fixes and improving overall project efficiency.

  • Test After Each Major Step: Don't wait until the entire setup is complete to test. After installing the Vault server, test client connectivity. After configuring the Job Processor, test a simple job.
  • Start with Simple Jobs (Job Processor): When testing the Job Processor, start with basic jobs (e.g., creating a DWF for a simple part) to confirm fundamental functionality before moving to more complex tasks.

Problem: Unmonitored systems can degrade silently, leading to unexpected outages and data loss.

Solution: Establish a routine for monitoring Vault server logs, SQL Server logs, and Job Processor logs for warnings/errors, adhering to backup schedules (and testing recoveries), and tracking disk space.

Impact: Proactive identification of potential problems, minimizing downtime, safeguarding data integrity, and ensuring continuous optimal performance.

  • Monitor Logs: Regularly review Vault server logs, SQL Server logs, and Job Processor logs for any warnings or errors.
  • Scheduled Backups: Adhere to the established backup schedule. Test recoveries periodically.
  • Disk Space Monitoring: Monitor disk space on the Vault server (especially for the file store and SQL Server data files).

Problem: User errors often masquerade as system issues, complicating troubleshooting and eroding trust.

Solution: Provide comprehensive user training on Vault best practices (check-in/check-out, file naming, etc.) and communicate any planned maintenance or upgrades.

Impact: Reduces user-induced errors, streamlines support, and fosters a proactive, informed user base, improving overall system adoption and satisfaction.

  • Proper User Training: Ensure users are properly trained on Vault best practices (check-in/check-out, file naming conventions, etc.). User errors can often manifest as perceived 'system issues.'
  • Communicate Changes: Inform users of any planned maintenance, upgrades, or changes to the Vault environment.

By following this structured approach and adhering to these best practices, most Vault View and Job Processor issues during a base setup can be effectively identified and resolved.
